Automatic Vertical Glass Washing Machine, Glass Washing and Combining Line
Automatic washing and drying system, Automatic Vertical(Horizontal) glass washing and combining line with roller press.

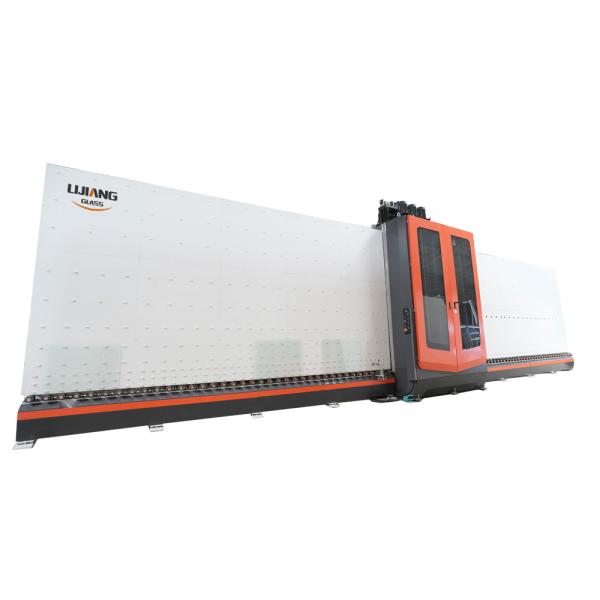

Jumbo Vertical Glass Washing Machine
★The cleaning machine body is made of thick high-quality stainless steel plates, which are strong and durable. ★The cleaning water tank is equipped with a wa......
Automatic Horizontal Glass Washing and Drying Machine
Glass washing machine LJQXJ2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass，it is composed ......
Horizontal Glass Washing and Drying Machine
Horizontal Glass Washing and Drying Machine used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass，it i......
Automatic Glass Washing Machine
Automatic Glass Washing Machine Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass...
EASTGLAZ - Glass Machinery
Automatic Vertical Glass Washing Machine, Glass Washing and Combining Line
What is the Vertical(Horizontal) Glass Washing Machine?
The automatic vertical(horizontal) glass washing machine is a special equipment for cleaning and drying the glass surface before the deep processing processes such as mirror making, vacuum coating, tempering, hot bending, and insulating glass assembling. The glass washing machine is mainly composed of a transmission system, scrubbing, water rinsing, pure water rinsing, cold and hot air drying, and electric control system. According to the needs of users, the medium and large glass washing machine is also equipped with a manual (pneumatic) glass turning trolley and inspection light source, and other systems.
Glass washing machine features
The vertical(horizontal) glass washing machine adopts the national standard square tube skeleton; the horizontal structure;
The temperature controller of the horizontal glass washing machine can adjust the blowing temperature from 0-90°;
The transmission part of the horizontal glass washing machine is controlled by a stepless speed changer, and the cleaning speed can be adjusted arbitrarily;
The conveying stick, brush stick and sponge stick of the horizontal glass washing machine are all made of high temperature resistant, acid and alkali resistant materials, and have a long service life;
The vertical(horizontal) glass washing machine is designed to be driven by dense rollers, with a large processing area, and the circulating water can clean the glass once.
The vertical(horizontal) glass washing machine uses a centrifugal fan with low volume and large air volume; high-temperature drying system, the surface temperature of the glass after cleaning is about 30-50°.
Vertical(Horizontal) glass washing machine applicable scope
The automatic vertical(horizontal) glass cleaning machine can clean glass with a minimum thickness of 25 mm, and the minimum cleaning thickness is 1.1 mm, which is suitable for lens glass, mosaic glass, etc.; the maximum glass cleaning range is 2500 mm, and the thickness can be adjusted to 30 mm, which is suitable for large tempered glass, which is thicker furniture glass and so
